Partial rehabilitation of the runway

Project description

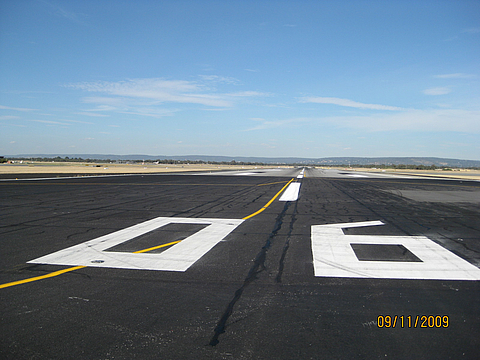

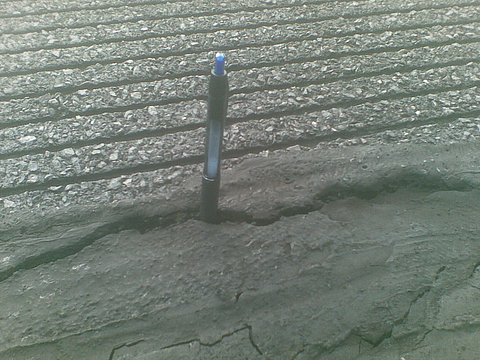

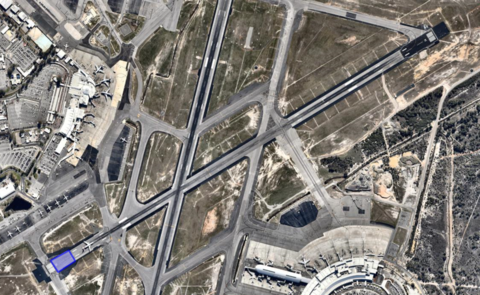

Perth Airport is the fourth busiest airport in Australia in terms of passenger traffic, operating 24 hours a day, seven days a week. In 2009, after repeated maintenance works over many years, an effective rehabilitation of the extensively cracked Runway 06 Threshold was required to restore its serviceability. The existing pavement consisted of 300 mm concrete slabs constructed in 1960, which were later overlaid with 20 mm asphalt surfacing. Due to the severely cracked condition of the existing pavement, resurfacing by using just a thin asphalt overlay was not expected to provide a long-term success. To solve this problem, the propagation of existing cracks and expansion joints from old concrete slabs into the new asphalt overlay needed to be prevented.

Solution

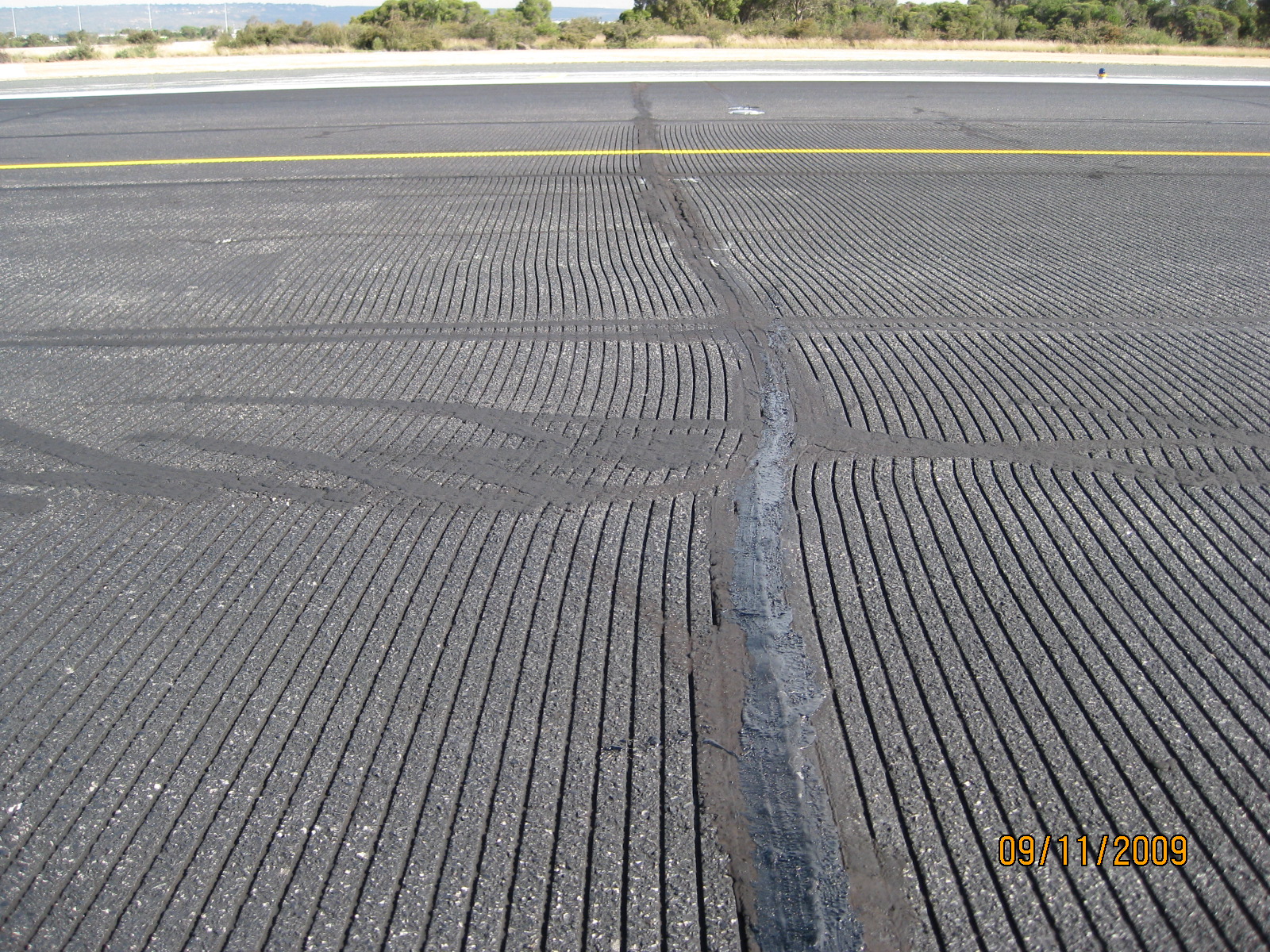

To effectively retard reflective cracking and thus extend the service life of the rehabilitated pavement, HUESKER’s asphalt reinforcement HaTelit C 40/17 was used. This solution comprises a flexible reinforcement grid made from high-modulus polyester yarns with an ultralight nonwoven backing for ease the installation. Both the grid and the nonwoven have a polymer-modified bituminous coating (with a minimum of 60% bitumen content) to enable an optimum bond between the asphalt layers. The rehabilitation procedure involved firstly texturing of the existing asphalt surface and construction of a 25mm thick asphalt layer. Subsequently, the asphalt reinforcement HaTelit C 40/17 was placed in accordance with the installation guidelines, and then covered with a 40mm asphalt wearing course.

Advantages

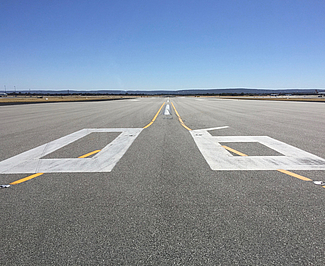

In February 2024, approximately 15 years after the rehabilitation, the condition of the Runway 06 was checked during a visual inspection. The pavement was found to be in an extremely good condition, without the propagation of the existing cracks and joints, well exceeding the expectations. Airport authorities have confirmed the asphalt reinforcement solution HaTelit C 40/17 to be highly successful in rehabilitation of what was once known as a very challenging runway pavement. This case study demonstrates that through effective crack retardation, service life of the rehabilitated pavement can be extended considerably. Positive effects include increased maintenance intervals, lower maintenance costs, increased sustainability through durability, and reduced disruption to flight operations. HUESKER Australia wishes to thank the Perth Airport Operations team for their collaboration and making this information available to the public.
